Baton Series

Slender, Attractive, Full of Light and made from high grade aluminum, the Baton-lite series features Tube Lights which will add elegance and grace no matter which application they are used in. With our Retrot and Standalone TL solutions in T5 and T8 you don't need to look any further!

Download Files

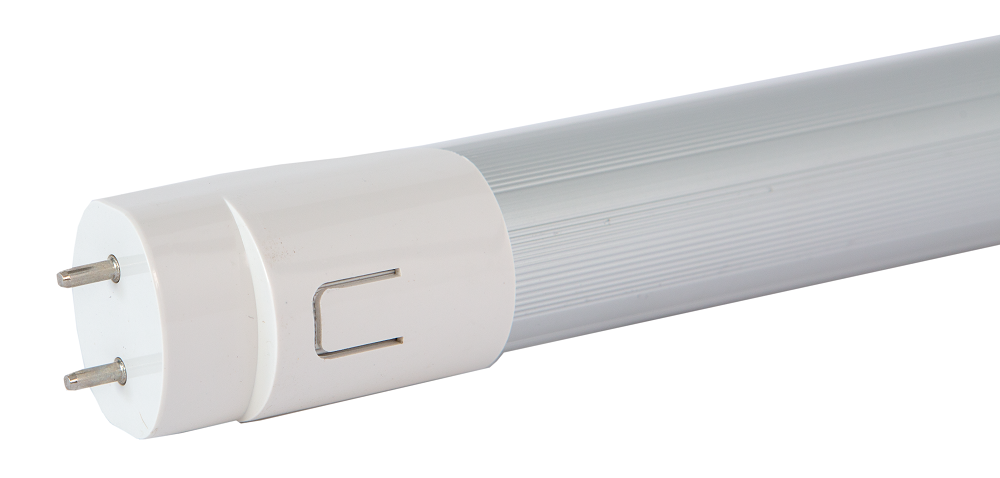

RETROFIT 15 W

Specification SAM T8 X L4 YYY P15 R**
 Power 15 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 1607
 Total System Efficacy 107.91 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.220 kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certied LEDs.
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Download Files

RETROFIT 18 W

Specification SAM T8 X L4 YYY P18 R**
 Power 18 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 1848
 Total System Efficacy 103.86 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.220 kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certied LEDs.
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Download Files

RETROFIT 20 W

Specification SAM T8 X L4 YYY P20 R**
 Power 20 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 1863
 Total System Efficacy 101.06 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.220 kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certied LEDs.
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Download Files

STANDALONE 10 W

Specification SAM T5 X L2 YYY P10 S**
 Power 10 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 941.63
 Total System Efficacy 84.10 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.160kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certied LEDs
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Download Files

STANDALONE 15 W

Specification SAM T5 X L4 YYY P15 S**
 Power 15 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 1504.7
 Total System Efficacy 98.35 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.195 kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certified LEDs
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Download Files

STANDALONE 18W

Specification SAM T5 X L4 YYY P18 S**
 Power 18 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 1652.5
 Total System Efficacy 95.04 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.195 kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certified LEDs.
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Download Files

STANDALONE 20W

Specification SAM T5 X L4 YYY P20 R**
 Power 20 Watt
 Input Voltage AC 100 - 304 V 50/60Hz
 PF >= 0.95
 CCT 2400 - 6000K
 *Luminous Flux (Lm) 1753.1
 Total System Efficacy 94.00 Lm/W
 Surge Protection Up to 1 KV
 CRI 80
Housing Extruded Aluminium
Diffuser Milky White PC
 Net Weight ~ 0.195 kg
 Life Span > 50000 hrs.
Certifications/Test Reports ROHS/LM79
Application Indoor
*Luminous Flux mentioned above is for CCT: 5700K
** X represents color tempreture. It is C: Cool white, W: Warm white & D: Day light
YYY represents No of LED's Used in Tube lights
Note
  1. Samudra LED uses only LM80 Certified LEDs.
  2. A variation of + 3% is possible in some of the above figures.
  3. Due to continuous change in technology, product is subject to change without prior notice.

Applications

Features Advantages

  • High Energy Efficiency Product
  • Instant ON/OFF
  • Easy To Install
  • Superior Light Quality
  • Excellent Heat Management for Longer Life
  • Manufactured In The State-Of-The-Art Factory At MIDC Baramati
  • Mercury free: Eco-Friendly green Technology
